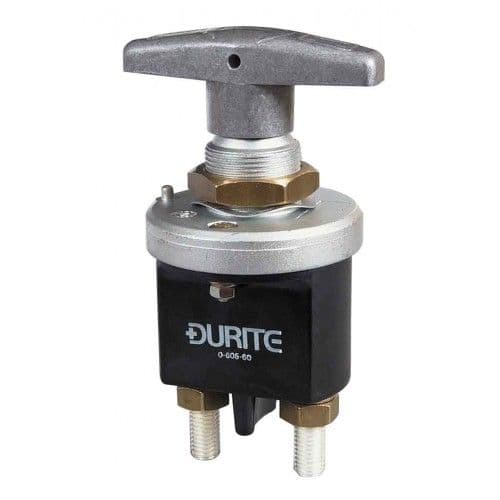

With fixed handle rated at 250 amps at 24 volt and 2500 amps for 5 seconds.
• 75mm dia flange fixing base,
• Height above plate 65mm with key fitted,
• 75mm below plate,
• Total height from top to bottom 155mm with key fitted,
• Handle 85mm long,
• Has 2 drilled panels for fixing,
• Requires 30.5m hole,
• 2 X 10mm copper post terminals.
Comes with a bag of fixed washers and bolts
