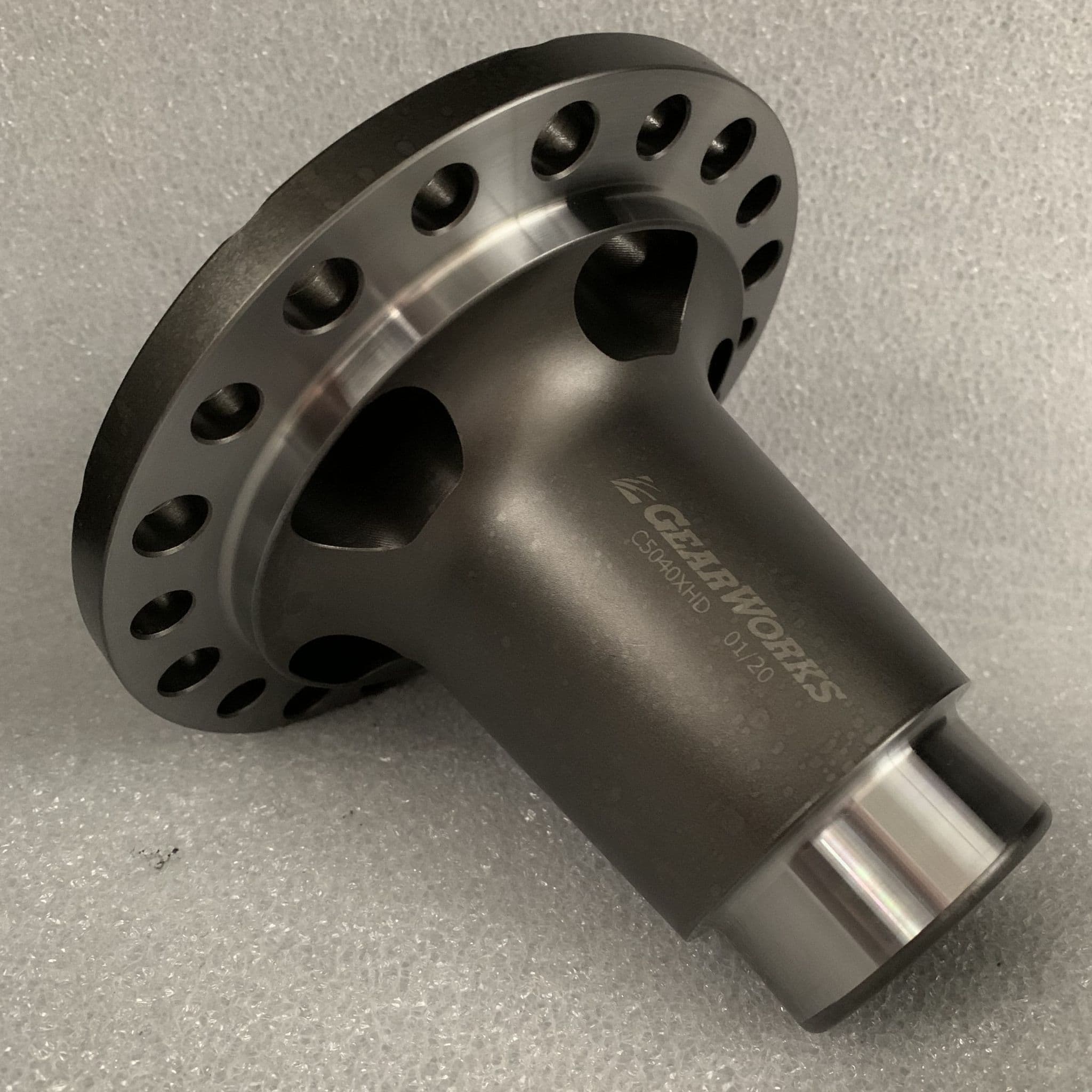

    Gearworks 40 Spline XHD Spool 2.25

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks 40 Spline XHD Spool is made from 4140 Chromoly making it the strongest 40 Spline 2.25″ journal spool on the market, it has both 1/2″ and 7/16″ bolt holes and the ring gear flange is extra thick to help eliminate ring gear deflection and designed for load bolt clearance.  With 5.5″ of spline most of the way through, having your axle lengths perfect is not as much of a problem. This spool is 1.4KG  heavier than the popular HD spool and has drastically higher flange rigidity due to increased thickness of the flange and web.  We use these primarily in applications that are run reversed like a flipped rear third member or our high pinion run in the rear.

    Fits the Big Bearing Casings

    Specifications

    Brand
    Gearworks
    Product Code
    GWC5040XHD
    Weight
    6.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks 40 Spline XHD Spool 2.25" Journal

    Product Code GWC5040XHD

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Made from 4140 Chromoly for maximum strength.
    • 1/2″ and 7/16″ bolt holes for versatile mounting.
    • Extra thick ring gear flange reduces deflection and allows for load bolt clearance.
    • 5.5″ of spline engagement for easier axle length adjustments.
    • 1.4KG heavier than the HD spool with significantly increased flange rigidity.
    • Ideal for reversed applications like flipped rear third members or high pinion setups.
    • Fits Big Bearing Casings.
