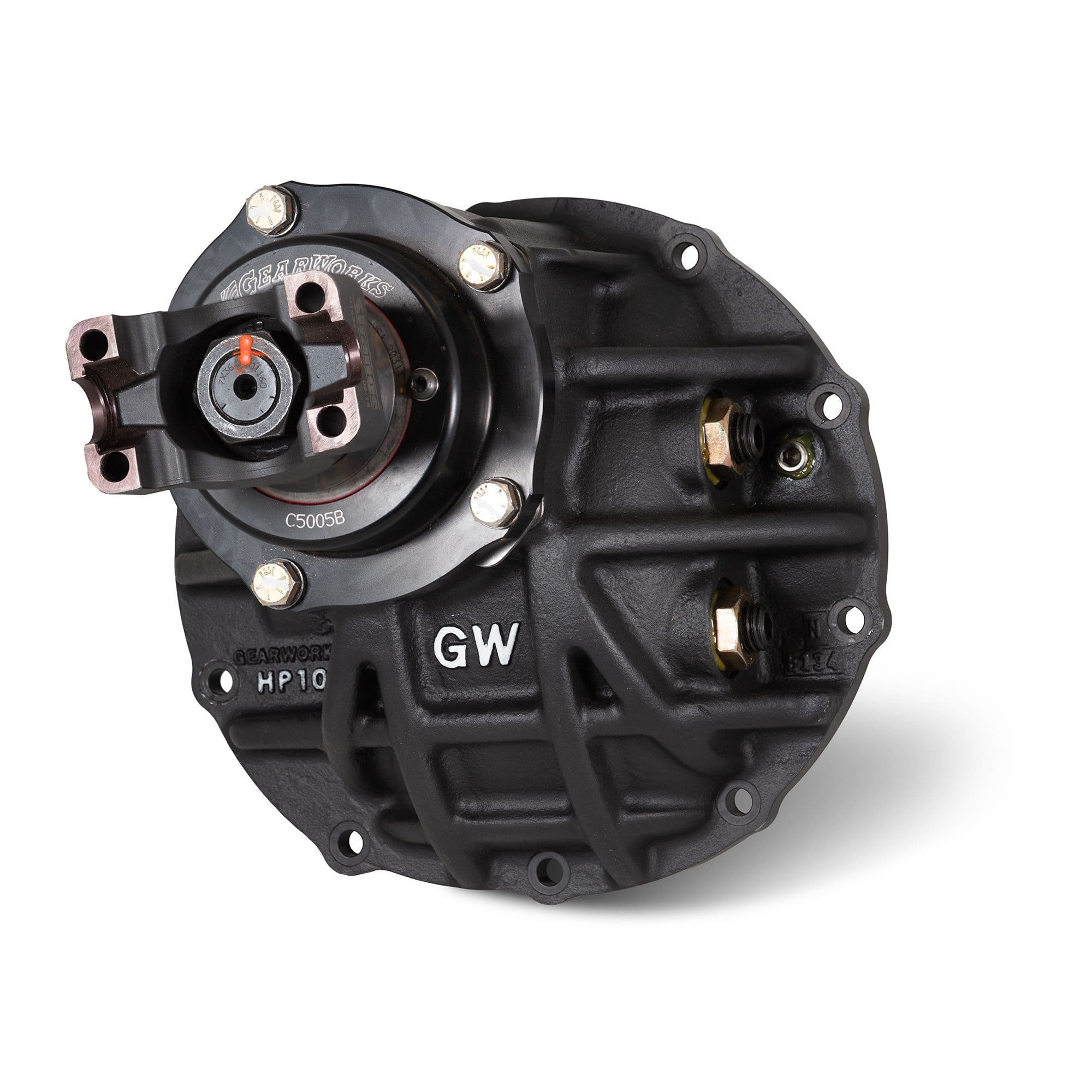

Gearworks High Pinion Big Bearing Fitted with a 35 Spline Spool

Product Code GWHPBB35

All Gearworks items are limited stock, Please contact us for availability before placing order.

• Proven Victory – More off-road race wins than any other high pinion dropout, thanks to superior design and testing.
• Tailored for Your Application – Custom-built for both front and rear applications to ensure a perfect fit.
• 3.812" Carrier Bores – Built for maximum strength and durability with robust carrier bores.
• 35 Spline Spool – Fitted with a 35 spline spool for enhanced performance and ruggedness.
• ARB Air Locker Ready – Pre-machined, drilled, and tapped to easily fit ARB air lockers should you decide to upgrade.
• Heavy-Duty Chromoly Construction – Massive 9/16" 8740 chromoly main studs and billet chromoly main caps provide ultimate strength.
• Dual Load Bolts – Designed with 2 load bolts for additional load-bearing capacity.
• Increased Bearing Capacity – .812" tall tail bearing, offering superior load handling and reliability.
• Premium Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings for smooth, long-lasting performance.
• Advanced Sealing – Double-lip pinion seal with dust exclusion lip to protect against contaminants.
• Heavy-Duty Yoke – Billet 1350 yoke with a welded-on seal guard for added protection and durability.
• Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios to suit your needs.

Full description below.

As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
​​​​​​​Price listed is the Starting Price - subject to individual specification
