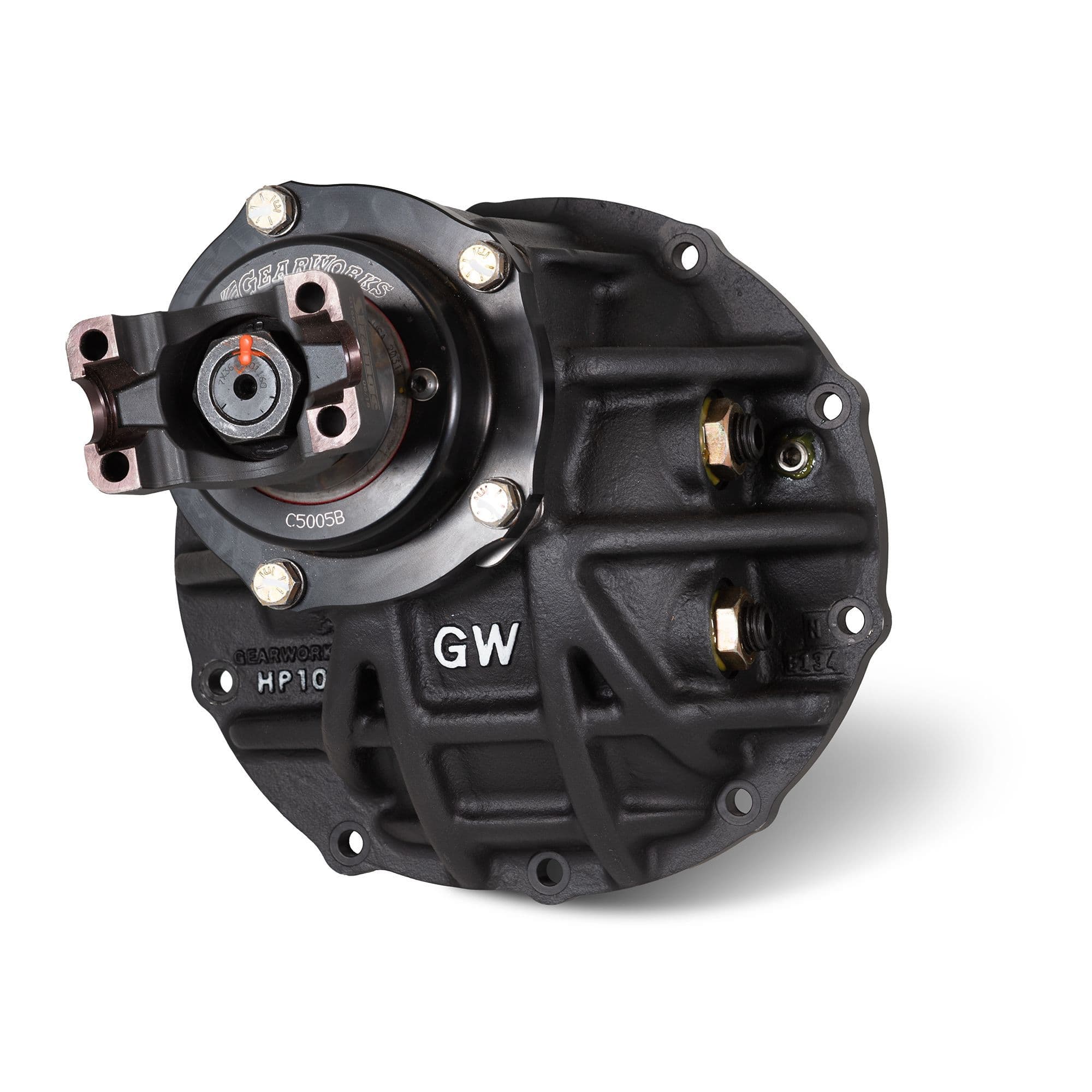

    Gearworks High Pinion Small Bearing Differential fitted with a 35 Spline Spool

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks HP10 thirdmembers have won more off road races than any other high pinion drop out. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.25″, fitted with a 35 spline, spool. Gearworks housings are already pre-machined, drilled and tapped for ARB air lockers. Should you need to change from a spool at a later date  The 3.25″ case uses forged main caps and ARP Chromoly cap screws for retention and a single load bolt.  The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate. They include a hard anodized 2024 billet Pinion Support with large Timken bearings, a double lip pinion seal with a dust exclusion lip, and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate .
    Price listed is the Starting Price - subject to individual specification.

    Specifications

    Brand
    Gearworks
    Product Code
    GWHPSM35
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks High Pinion Small Bearing Differential fitted with a 35 Spline Spool

    Product Code GWHPSM35

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Race-Proven Performance – More off-road race wins than any other high pinion dropout.
    • Built for Strength & Reliability – Crafted with the highest quality components and thorough testing.
    • Customised for Your Needs – Suitable for both front and rear applications.
    • Heavy-Duty 3.25" Case – Features forged main caps and ARP chromoly cap screws for secure retention.
    • 35-Spline Spool – Delivers uncompromising strength and durability.
    • ARB Air Locker Ready – Pre-machined, drilled, and tapped for easy conversion from spool to locker.
    • Enhanced Load Capacity – .812" tall tail bearing, secured by a bolt-in retainer plate.
    • Premium Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings and a double-lip pinion seal with a dust exclusion lip.
    • High-Quality Yoke – Comes with a billet 1350 yoke, featuring a welded-on seal guard.
    • Multiple Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate .
    Price listed is the Starting Price - subject to individual specification.
