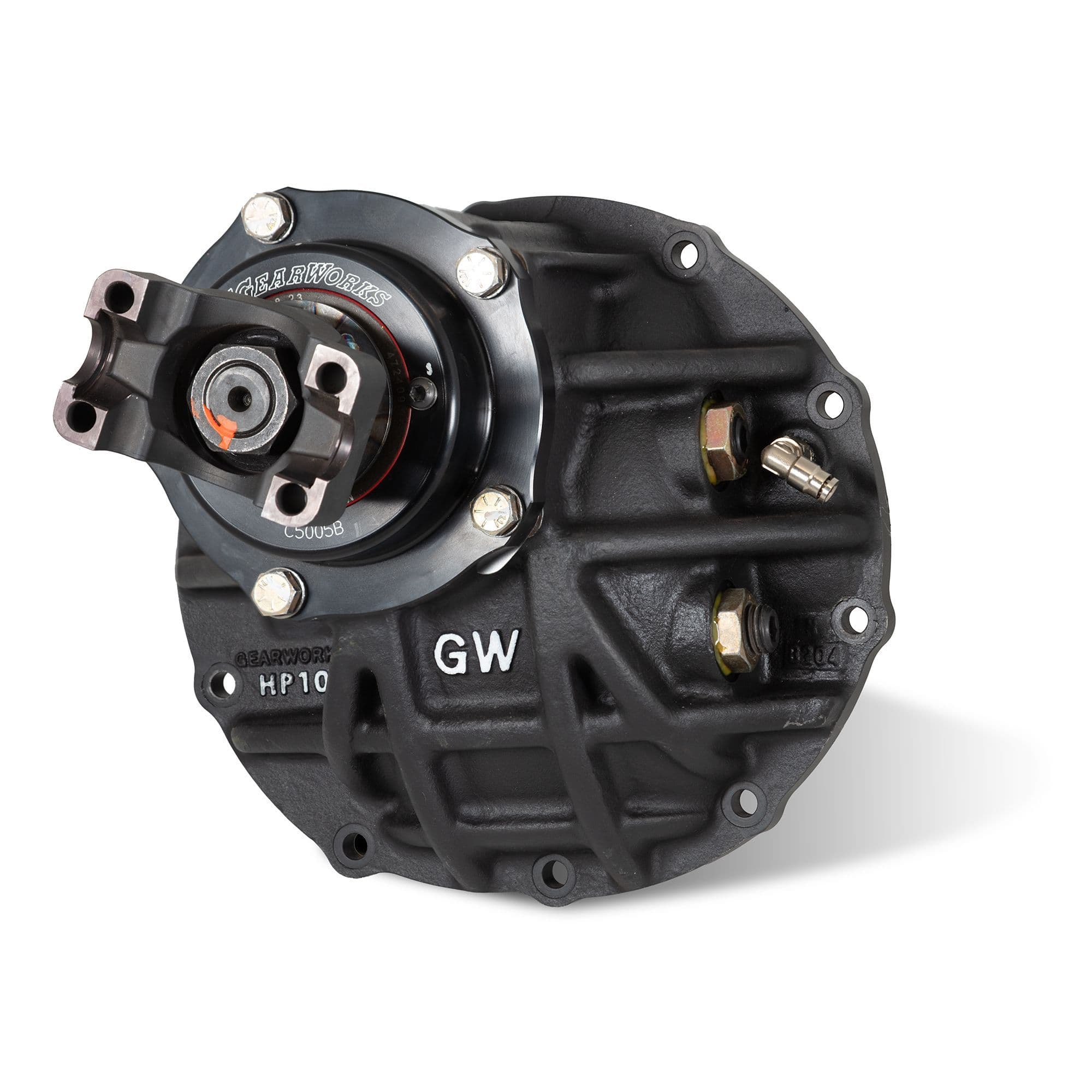

    Gearworks High Pinion Small Bearing fitted with a ARB RD99CE

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks HP10  thirdmembers have won more off road races than any other high pinion drop out. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.25″,  fitted with an ARB RD99CE.  The 3.25″ case uses forged main caps and ARP Chromoly cap screws for retention and a single load bolt.  The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate.  They include a hard anodized 2024 billet Pinion Support with large Timken bearings, a  double lip pinion seal with a dust exclusion lip and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600

    As there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate .

    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWHPSBRD99CE
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks High Pinion Small Bearing fitted with a ARB RD99CE

    Product Code GWHPSBRD99CE

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Proven Race-Winning Performance – More off-road victories than any other high pinion dropout.
    • Precision Engineering – Built with the highest quality components and rigorous testing for ultimate reliability.
    • Custom-Tuned for Your Application – Suitable for both front and rear setups.
    • Durable 3.25" Case – Features forged main caps and ARP chromoly cap screws for maximum strength.
    • ARB Locker Ready – Fitted with an ARB RD99CE for superior traction.
    • Reinforced Tail Bearing – Utilises a .812" tall bearing for added load capacity, secured by a bolt-in retainer plate.
    • Premium Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings and a double-lip pinion seal with a dust exclusion lip.
    • High-Strength Yoke – Comes with a billet 1350 yoke, featuring a welded-on seal guard.
    • Multiple Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    Full details below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification
