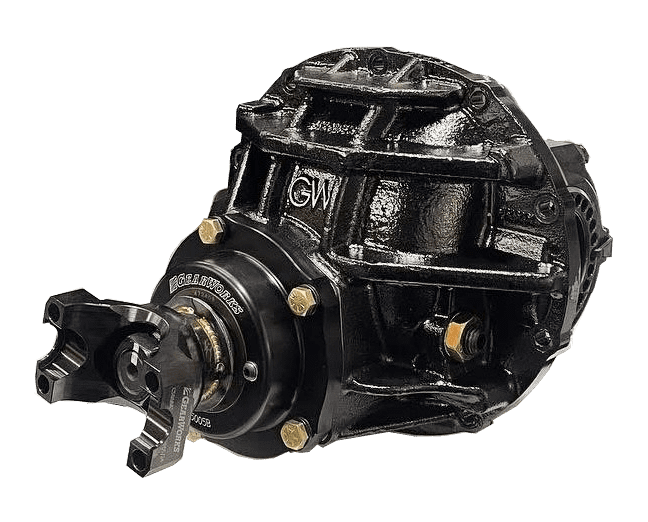

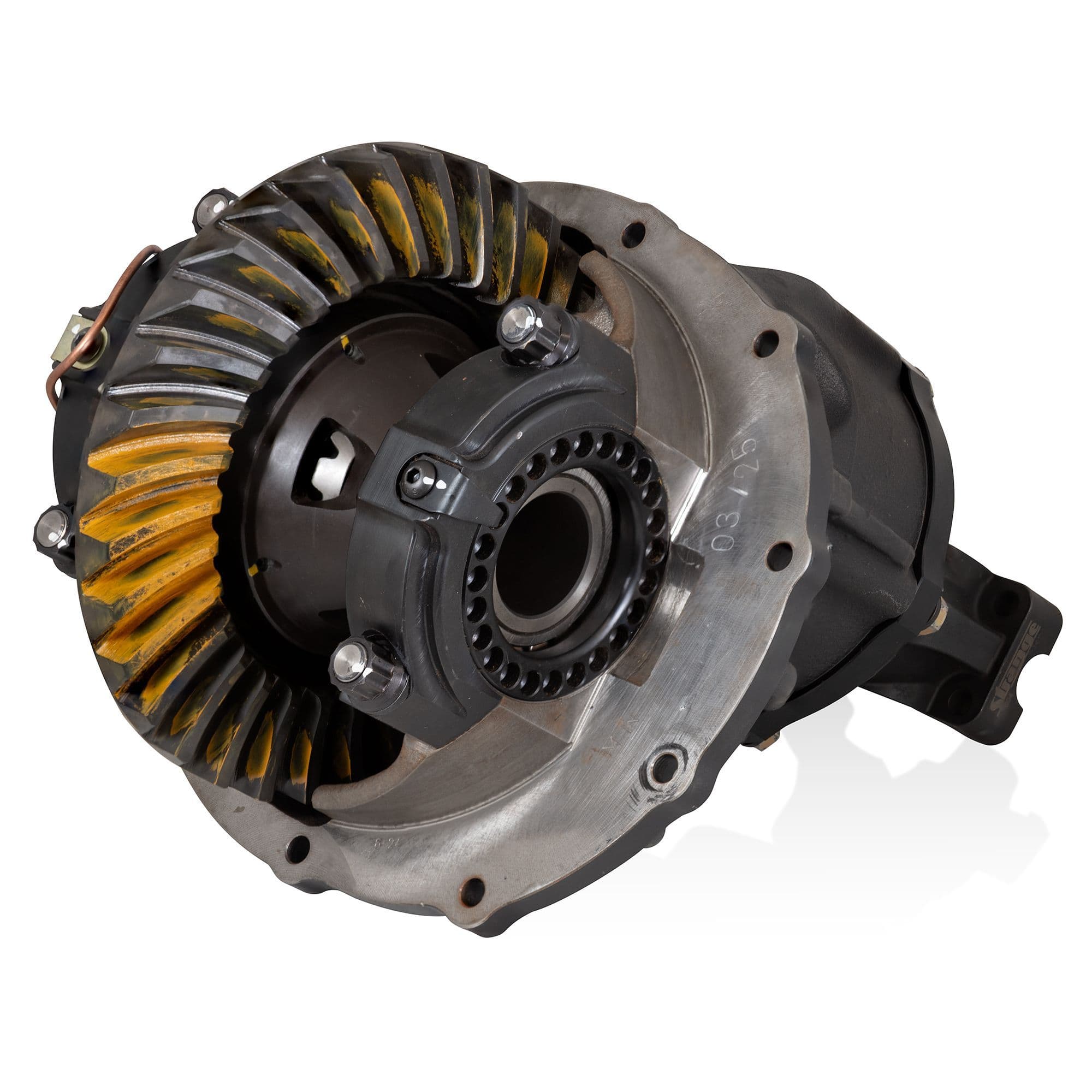

    Gearworks Low Pinion Big Bearing Differential fitted with a RD249CE
    Gearworks Low Pinion Big Bearing Differential fitted with a RD249CE

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks Low Pinion thirdmembers. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each Low Pinion Big Bearing (3.812) thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores of 3.812″, fitted with the ARB RD249CE air locking differential. Our housings are already pre-machined, drilled and tapped for ARB air lockers. The 3.812″ cases utilises massive 9/16″  8740 chromoly main studs with huge billet chromoly main caps and have 2 load bolts. and a single load bolt. The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate. They include a hard anodized 2024 billet Pinion Support with large Timken bearings, a  double lip pinion seal with a dust exclusion lip, and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWLPBBRD249CE
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks Low Pinion Big Bearing Differential fitted with a RD249CE

    Product Code GWLPBBRD249CE

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Precision-Engineered for Performance – Built with the highest quality components and rigorous testing.
    • Custom-Tuned for Your Application – Designed for both front and rear setups.
    • Heavy-Duty 3.812" Case – Features massive 9/16" 8740 chromoly main studs and billet chromoly main caps for extreme strength.
    • ARB Air Locker Equipped – Fitted with the ARB RD249CE air locking differential for superior traction.
    • Future-Proof Design – Pre-machined, drilled, and tapped for ARB air lockers.
    • Enhanced Load Capacity – Utilises a .812" tall tail bearing, secured by a bolt-in retainer plate.
    • Reinforced Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings and a double-lip pinion seal with a dust exclusion lip.
    • High-Strength Yoke – Includes a billet 1350 yoke with a welded-on seal guard.
    • Multiple Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    See full description below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    ​​​​​​​Price listed is the Starting Price - subject to individual specification
