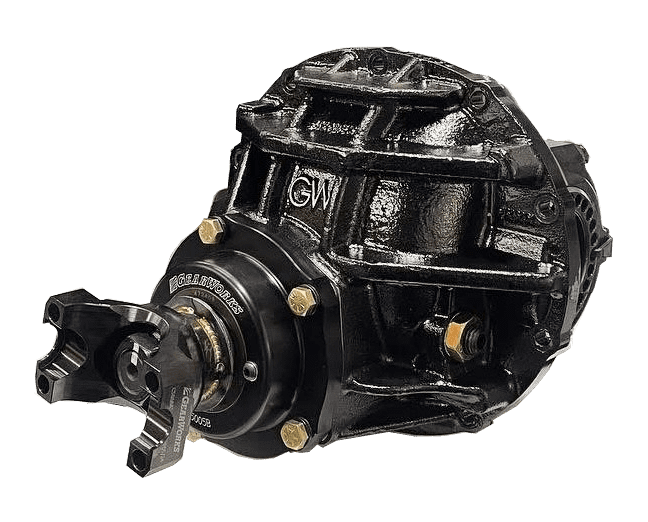

    Gearworks Low Pinion Big Bearing fitted with a 35 Spline Spool

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks Low Pinion thirdmembers. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each Low Pinion Big Bearing (3.812) thirdmember is specially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.812″, Fitted with  35 Spline  Spool. Gearworks housings are already pre-machined, drilled and tapped for ARB air lockers, should you need to change from a spool at a later date. To guard against deflection, spanner nut ejection and subsequent gear failure the main bearing caps and spanner nuts are made from chromoly steel as opposed to aluminium. Held Tight by massive 9/16″ ARP studs and hardware. The case is CNC machined to clear a ring gear with a true outer diameter of 9.500”. Unseen are two set screws at the 3 and 9 O’clock position usable to jack the case assembly out of the axle housing should it be stuck, and four of the five 7/16″ pinion support bolt holes are drilled and tapped blind to avoid sealing issues when a pinion support mounted skid plate is used. The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate.  They include a hard anodised 2024 billet Pinion Support with large Timken bearings, a double lip pinion seal with a dust exclusion lip and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWLPBB35
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks Low Pinion Big Bearing fitted with a 35 Spline Spool

    Product Code GWLPBB35

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Precision Engineering for Victory – Crafted with the highest quality components and rigorous testing, ensuring unbeatable performance.
    • Customised for Your Application – Whether for front or rear use, each thirdmember is specially set up for your needs.
    • 3.812" Carrier Bores – Designed for maximum strength, built to withstand the toughest off-road conditions.
    • 35 Spline Spool – Fitted with a 35 spline spool, offering enhanced strength and durability.
    • ARB Air Locker Ready – Pre-machined, drilled, and tapped for easy installation of ARB air lockers in the future if needed.
    • Chromoly Strength – Main bearing caps and spanner nuts are made from chromoly steel to resist deflection and gear failure, unlike aluminum alternatives.
    • Heavy-Duty Fasteners – Secured by massive 9/16" ARP studs and hardware for a solid, long-lasting assembly.
    • Precise CNC Machining – Case machined to clear a ring gear with an outer diameter of 9.500" for a perfect fit.
    • Set Screw Functionality – Includes two set screws at the 3 and 9 o'clock position to help remove the case from the axle housing if stuck.
    • Enhanced Sealing Features – Four of the five 7/16" pinion support bolt holes are drilled and tapped blind to prevent sealing issues when using a pinion support-mounted skid plate.
    • Increased Bearing Capacity – .812" tall tail bearing for added strength, secured by a bolt-in retainer plate.
    • Advanced Pinion Support – Features a hard anodised 2024 billet pinion support with large Timken bearings for long-lasting durability.
    • Superior Seals – Double-lip pinion seal with a dust exclusion lip to ensure reliability in all conditions.
    • Heavy-Duty Yoke – Billet 1350 yoke with a welded-on seal guard for extra protection and durability.
    • Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios to meet your specific needs.

    Full description below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    ​​​​​​​Price listed is the Starting Price - subject to individual specification
