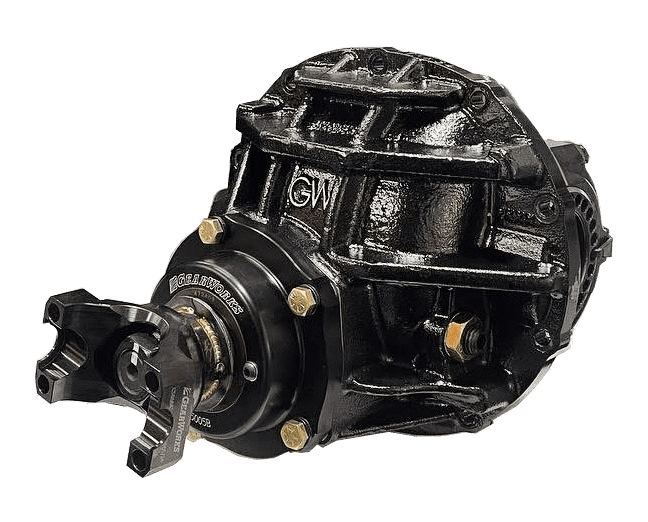

    Gearworks Low Pinion Small Bearing differential fitted with a 35 Spline Spool

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks Low Pinion thirdmembers. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each Low Pinion Small Bearing (3.250") thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.250″, fitted with a 35 Spline Spool. Gearworks housings are already pre-machined, drilled and tapped for ARB air lockers. Should you need to fit at a later date. The 3.250 case utilises a single load bolt. The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate. They include a hard anodized 2024 billet Pinion Support with large Timken bearings, a  double lip pinion seal with a dust exclusion lip, and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWLPSB35
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks Low Pinion Small Bearing differential fitted with a 35 Spline Spool

    Product Code GWLPSB35

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Engineered for Durability – Built with the highest quality components and rigorous testing for exceptional off-road performance.
    • Customised for Your Application – Ideal for both front and rear setups.
    • Heavy-Duty 3.250" Case – Precision-designed for high strength and reliability.
    • 35 Spline Spool – Fitted with a 35 spline spool for maximum performance and durability.
    • ARB Air Locker Ready – Pre-machined, drilled, and tapped for easy ARB air locker installation when needed.
    • Optimised Load Handling – Features a single load bolt to ensure stability under load.
    • Enhanced Load Capacity – Includes a .812" tall tail bearing, secured by a bolt-in retainer plate for added strength.
    • Premium Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings for smooth, reliable operation.
    • Superior Sealing – Double-lip pinion seal with a dust exclusion lip to protect against contaminants.
    • Heavy-Duty Yoke – Fitted with a billet 1350 yoke and a welded-on seal guard for extra protection.
    • Multiple Gear Ratio Options – Choose from 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    Full description below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    ​​​​​​​Price listed is the Starting Price - subject to individual specification
