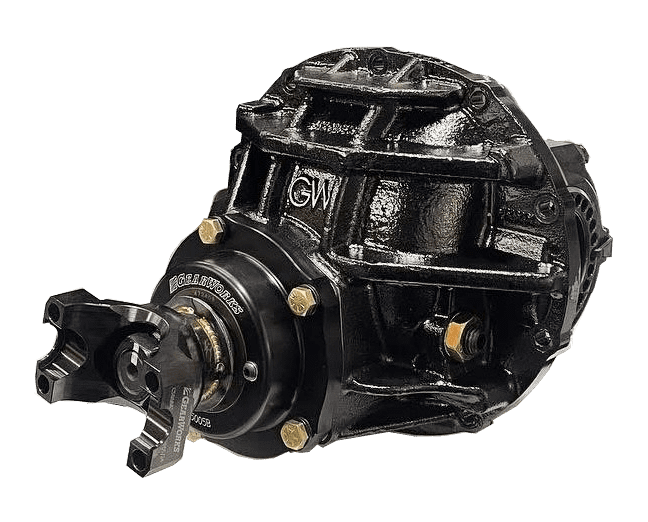

    Gearworks Low Pinion Small Bearing Differential fitted with a 40 Spline Spool

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks Low Pinion thirdmembers. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each Low Pinion Small Bearing (3.250") thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.250″, fitted with a 40 Spline Spool. Gearworks housings are already pre-machined, drilled and tapped for ARB air lockers, Should you need to fit at a later date. The 3.250 case utilises a single load bolt.  The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate.  They include a hard anodised 2024 Billet Pinion Support with large Timken bearings, a  double lip pinion seal with a dust exclusion lip, and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWLPSB40
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks Low Pinion Small Bearing Differential fitted with a 40 Spline Spool

    Product Code GWLPSB40

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Race-Proven Performance – Precision-engineered with top-quality components for unbeatable off-road durability.
    • Customised Fit for Your Needs – Suitable for both front and rear axle applications.
    • 3.250" Case for Strength – Designed to handle extreme loads with high-strength materials.
    • 40 Spline Spool – Fitted with a 40 spline spool for maximum durability and performance.
    • ARB Air Locker Ready – Pre-machined, drilled, and tapped for seamless ARB air locker installation if needed.
    • Enhanced Load Handling – Utilises a single load bolt for added stability and strength.
    • Increased Load Capacity – .812" tall tail bearing provides extra durability, secured with a bolt-in retainer plate.
    • Premium Pinion Support – Hard anodised 2024 billet pinion support, paired with large Timken bearings for smooth operation.
    • Reliable Sealing – Double-lip pinion seal with a dust exclusion lip to protect against contaminants.
    • Heavy-Duty Yoke – Includes a billet 1350 yoke with a welded-on seal guard for added protection.
    • Multiple Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    Full product details below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    ​​​​​​​Price listed is the Starting Price - subject to individual specification
