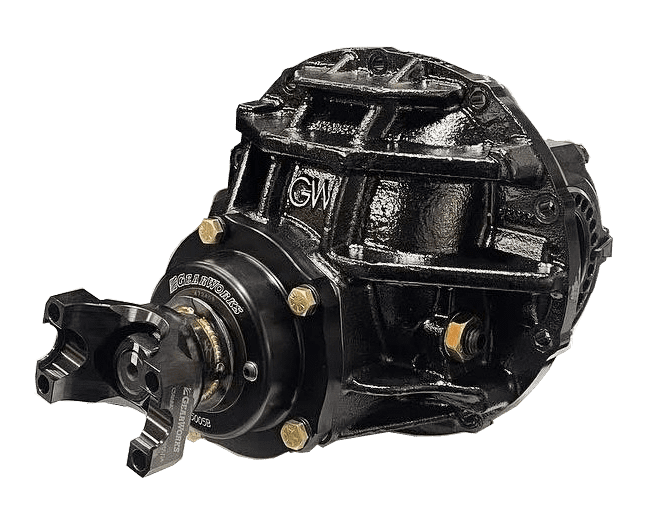

    Gearworks Low Pinion Small Bearing Differential fitted with a RD99CE

    Product Description

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    Gearworks Low Pinion thirdmembers. Our attention to detail, using only the highest quality components and thorough testing has made for a winning combination.

    Each Low Pinion Small Bearing (3.250") thirdmember is especially set up for your application. Whether it’s a front or rear application we have you covered. With carrier bores in 3.250″, fitted with the ARB RD99CE air locking differential. Gearworks housings are already pre-machined, drilled and tapped for ARB air lockers. The 3.250 case utilises a single load bolt. The tail bearing uses a .812″ tall bearing adding capacity over others housings and is retained by a bolt in retainer plate. They include a hard anodized 2024 billet Pinion Support with large Timken bearings, a double lip pinion seal with a dust exclusion lip, and a billet 1350 yoke with a seal guard welded on.

    Your choice of ratios; 4.57 – 4.86 – 5.14 – 5.43 – 5.83 – 6.20

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    Price listed is the Starting Price - subject to individual specification

    Specifications

    Brand
    Gearworks
    Product Code
    GWLPSBRD99CE
    Weight
    41.5kg

    Customer reviews

    No reviews left yet
    Write A Review

    Customer Reviews

    Gearworks Low Pinion Small Bearing Differential fitted with a RD99CE

    Product Code GWLPSBRD99CE

    All Gearworks items are limited stock, Please contact us for availability before placing order.

    • Proven Race-Winning Performance – Engineered for extreme off-road durability and reliability.
    • Customisable for Your Application – Suitable for both front and rear configurations.
    • Precision-Built 3.250" Case – Designed for high-strength performance.
    • ARB Air Locker Equipped – Fitted with the ARB RD99CE air locking differential for ultimate traction control.
    • Air Locker Ready – Pre-machined, drilled, and tapped to accommodate future air locker upgrades.
    • Optimised Load Handling – Utilises a single load bolt for improved stability.
    • Enhanced Load Capacity – Features a .812" tall tail bearing, secured by a bolt-in retainer plate.
    • Premium Pinion Support – Hard anodised 2024 billet pinion support with large Timken bearings for maximum strength.
    • Superior Sealing – Double-lip pinion seal with a dust exclusion lip for enhanced protection.
    • Heavy-Duty Yoke – Includes a billet 1350 yoke with a welded-on seal guard.
    • Multiple Gear Ratio Options – Available in 4.57, 4.86, 5.14, 5.43, 5.83, and 6.20 ratios.

    Full description below.

    As these are built to individual specification please call us on +44 (0) 1732 463600 as there are numerous options in terms of gear type and ratio.

    We Ship the built housing mounted to a wooden frame in a plastic shipping crate.
    ​​​​​​​Price listed is the Starting Price - subject to individual specification
