Gigglepin  Hurricane Gear Set

Gigglepin Hurricane Gear Set

  • Product Description
  • Product Options

Some winch users require above average speeds for their winches. The Hurricane gear set has been designed to give

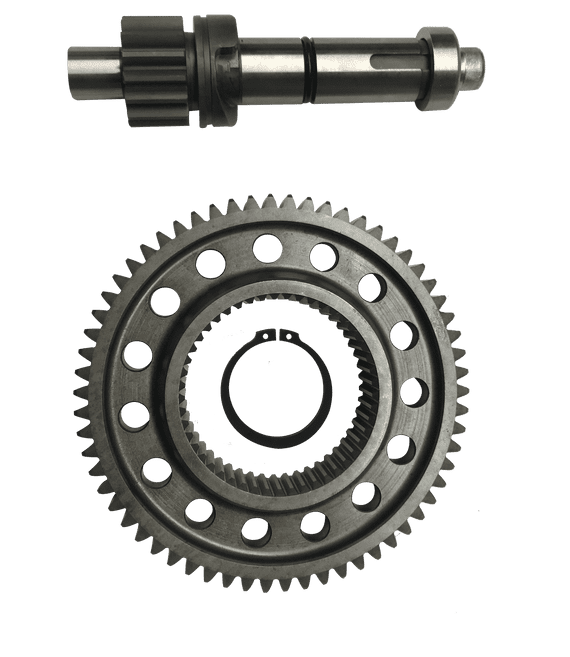

increased speed & improved strength. This set of two gears replaces the MainShaft & the lower drive gear (7550) in your 8274 or GP winch. The new 15 tooth MainShaft offers improved tooth contact and has a built in small cam gear for enhanced reliability. The large drive gear has been reduced to from 66 to 62 teeth and offers the following speed increases-



Standard ratios                              Fitted with Hurricane gears

    STD    133.28:1                            Becomes +31%   91.82:1

+ 15%    115.41:1                             Becomes +40%   79.50:1

+ 25%    100.94:1                             Becomes +48%   69.53:1

+ 40%      83.75:1                             Becomes +57%   57.69:1

+ 50%      66.56:1                             Becomes +66%   45.86:1

+ 60%      53.68:1                             Becomes +72%   36.98:1


The Hurricane gears offer the following speed increases when combined with the NEW Hellfire gears:

Standard GP100 ratios           Fitted with Hurricane and Hellfire gears

STD 133.28:1                            Becomes +51% 54.09:1
+ 15% 115.41:1                         Becomes +65% 46.84:1
+ 25% 100.94:1                         Becomes +69% 40.96:1
+ 40% 83.75:1                           Becomes +74% 33.99:1
+ 50% 66.56:1                           Becomes +80% 27.01:1
+ 60% 53.68:1                           Becomes +84% 21.78:1


Please note if you are fitting this kit to a standard Warn 8274 lower housing that has not already been fitted with a Gigglepin SuperShaft you will require our fitting/Shim Kit in order to install this gearset.
Please select from the options tab above if you require this. (extra £34.00 + VAT).


Please note these are only compatible with the Gigglepin Large Cam Gear.

For more info watch this video: https://www.youtube.com/watch?v=uokUtyoDCA8

Product Brand: Gigglepin
Product Code: G19002
Our Price: £270.00
Inc VAT: £324.00
