Product Description

This pneumatic FreeSpool drum is a direct replacement for the drum on a standard Warn 8274/8074 (of any age). We have completely redesigned our FreeSpool drum to be stronger, lighter and easier to use. It now features a reduced diameter drum and a stronger engagement system. Fitted with large roller bearings, 8mm drum plates, rope retainer loop and housing seal.

Available in three lengths:

Short (same length as Warn 8274/8074)
Standard (+76mm length)
Long (+114mm Length)

It is the weapon of choice for those looking for an easy-to-use FreeSpool drum.

You can also choose from two types of Air Activation kit (at extra cost please select from 'Options' tab above).

1. Electrical Activation Kit
This kit comes supplied with:

  • Air Solenoid
  • Y Piece kit to mount your solenoid directly to an ARB compressor
  • On/Off electrical switch
  • Red 'Fighter Pilot' style switch cover
  • 4m 6mm air pipe
  • 2 x High Quality 1/8BSP Breather Elbows
  • Roll of PTFE tape
  • Wiring diagram for solenoid connections

2. Air Activation Kit
This Kit comes supplied with:

  • Mechanical Air Switch
  • 4m 6mm Air Pipe
  • 4 x High Quality 1/8BSP breather elbows
  • Roll of PTFE tape
  • Wiring diagram for solenoid connections


Drum Features:

  • NEW stronger engagement system with smoother free-spool action
  • Sealed drum bearing on the free end with aluminium bearing support
  • 8mm thick Drum end plates to reduce flex
  • Drum end plates spaced away from lower housing so if either do flex the drum continues to operate
  • Stainless steel bearing supports to stop corrosion
  • Reduced diameter drum available in two lengths, short and long (+76mm)
  • IMPROVED EN36 case hardened dog engagement technology for total reliability
  • Large free end sealed bearing & adapter/retention ring for smooth operation
  • PTFE support washer for perfect sealing and smoother operation
  • Gigglepin rope retention system
  • Supplied with Nitrile drum seal
  • Tough Black Nylon Coating
  • Supplied with GP Seal Lube (G10018)
  • Supplied with fitting guide
  • Choice of Air Activation Kits (Electrical / Mechanical) at extra cost

Please choose which Drum length you require and your choice of air activation kit from the Options menu above.

Specifications

Brand
Gigglepin
Product Code
G11002
Weight
16kg

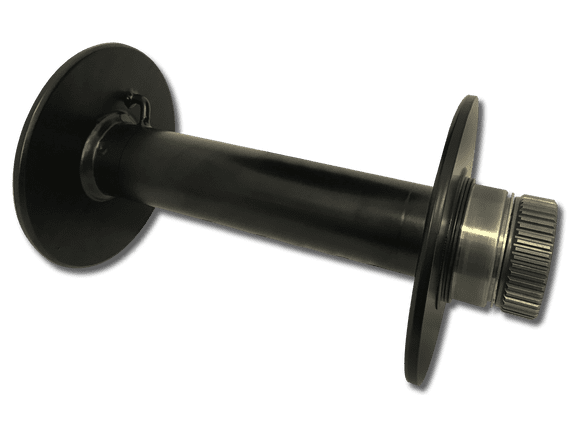

Gigglepin FreeSpool Drum for 8274
