Steering Box & Hydro Kits

Sort by:

View

Showing 1 - 5 of 5 products
Showing 1 - 5 of 5 products

Discovery 1 Drop Arm Mount for Hydro Assist Kit

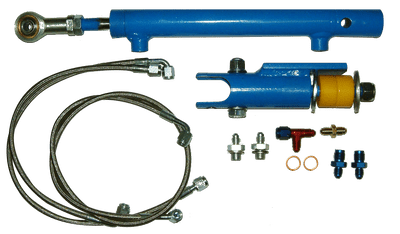

Gwyn Lewis Hydro Steering Kit

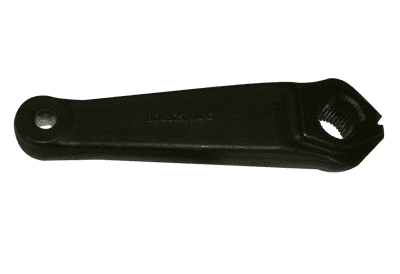

Steering box Drop Arm for late Discovery 1

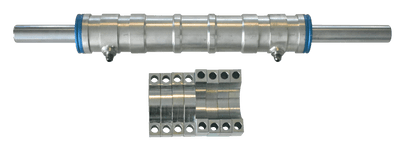

Lightweight double ended Steering Ram from D&G Tuning. This ram is constructed using billet machined chromoly tube and a 32mm (1.26") heat treated chromoly shaft which is drilled and tapped to ¾UNF (19mm). It has AN6 male fittings tig welded to the main body and is available in either 8 inch (203mm) or 10 inch (254mm) variants. Internal diameter is 2.30" (58mm), and total volume is 450ml.

Fitted with high pressure, high temperature seals this ram is designed for the harshest environments when fast, accurate steering is required.

This Hydraulic Ram comes supplied with mounting clamps.

Clevis kit available separately here.

Clevis Mount Kit for D&G Tuning Chromoly Hydraulic Steering Ram.

These are chromoly heat treated, and accept 3/4UNF rod ends.

Please Note: These rams are built to order. Contact us for current lead times.
