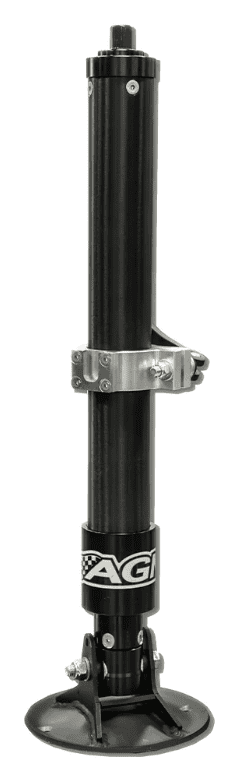

AGM Manual Jack

Tired of slow and heavy jacks?

AGM Manual Jack is the compact, lightweight solutions to these problems. Its quick release height adjustment clamp (change lift point on the fly), concave pad design (prevents pad sink in sand) and modular mounting system (locks the Jack to the vehicle) will give you confidence and peace of mind that whatever life throws at you, you'll fix it fast with the Manual Jack.

Using the same impact wrench that you use on your wheel nuts (using a ¾”/19mm socket) to raise and lower the jack, operation is very quick, Utilising the full power of your impact wrench in reverse to raise the vehicle, so maximum break away torque is available.

• 3000lbs (1360 kg) capacity.

• 14in. Travel.

• 17in. External height adjustment.

• Weighs 11 lbs (5Kg).

• 27.5in (70cm). Collapsed length (with pad folded for storage).

• No sink pad design.

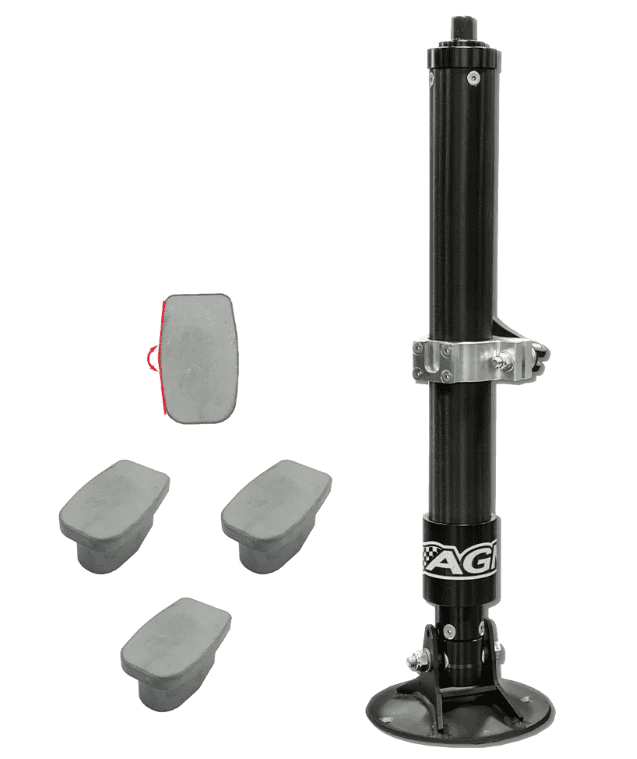

• Modular mounting system lets you use one of the lift adaptors (Jack Points or Universal hook) or you can make your own.

• Designed primarily for use on UTV vehicles, it is capable of picking up individual corners of ULTRA 4 Race Cars, Trophy Raid Trucks and Challenge Trucks, and is used on the Gigglepin race vehicles.

U.S. Pat. No. 11,584,624
