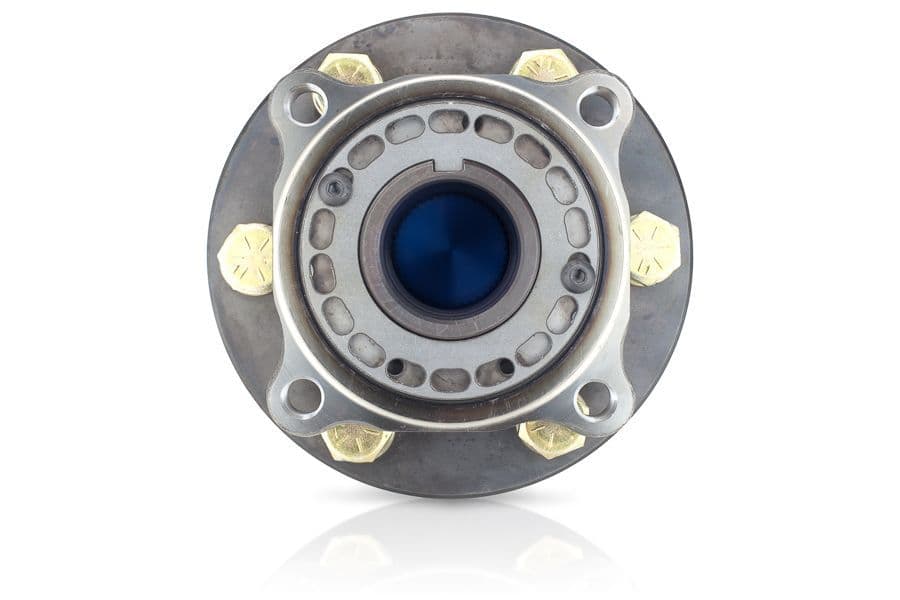

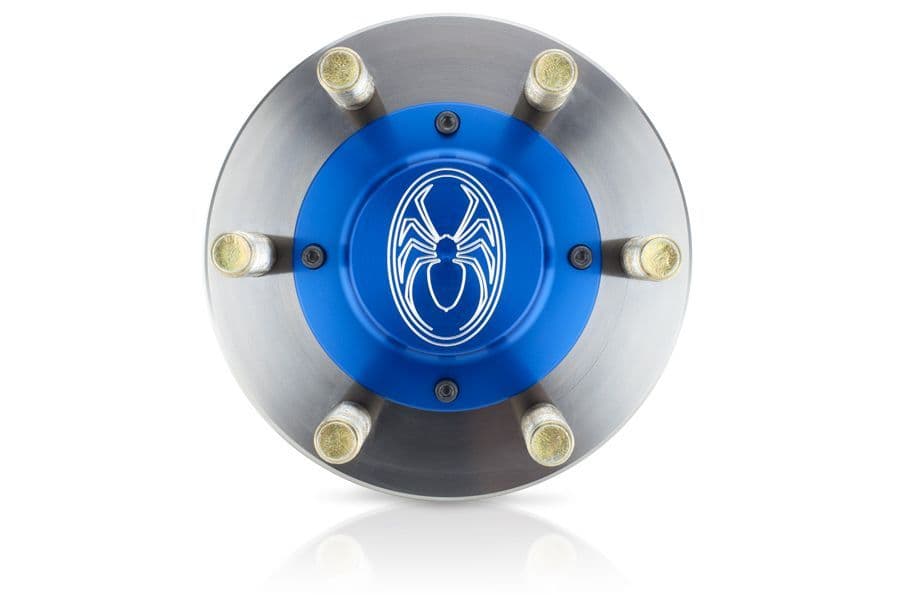

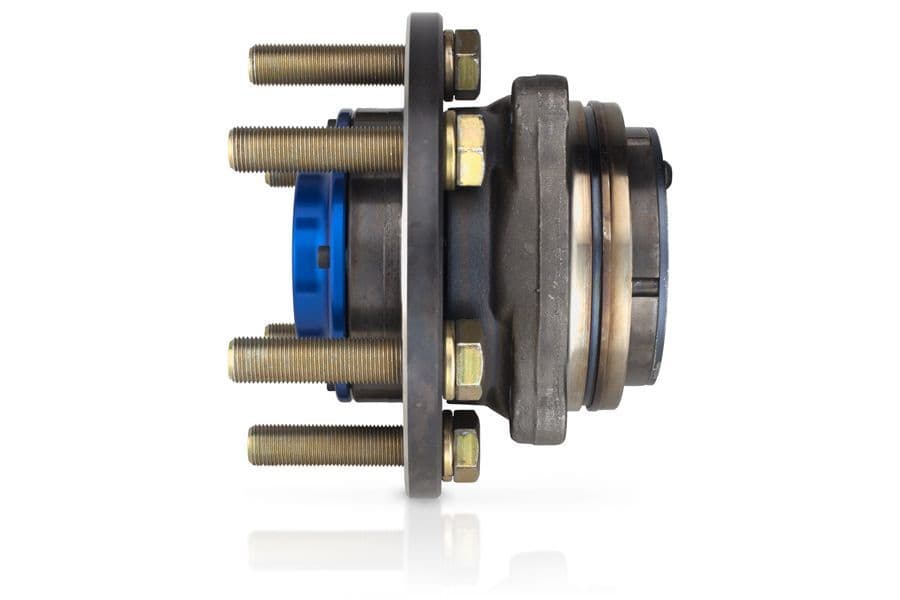

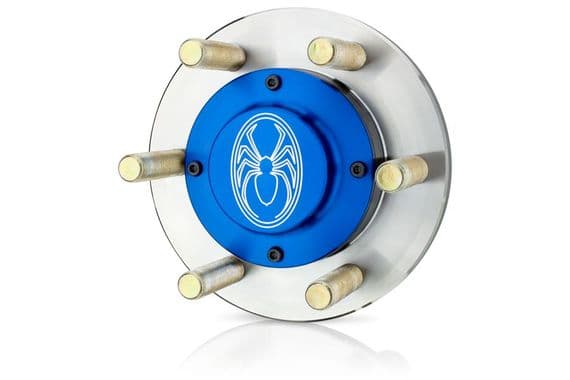

Built ground up for Ultra4 rock racers, the Spidertrax Ultimate Unit Bearing is truly the reinvention of the unit bearing itself. Genuine Timken bearings, full chromoly heat treated construction, and a fully integrated drive slug makes the Ultimate Unit Bearing the only racing unit bearing of its kind. The Ultimate Unit Bearing, the last bearing you'll ever need.

This Ultimate Unit Bearing uses 5/8" (15.9mm)-18 studs on a 6 on 5 1/2" (139.7mm) bolt circle, designed specifically for Spidertrax 40 splined axle shafts.

This stud pattern is widely used and is the same as Nissan Y60 and Y61. However, please note this Unit Bearing comes with 5/8" (15.9mm) UNF studs.

PLEASE NOTE - ALTHOUGH DISPLAYED IN THE PHOTOS, THE DRIVE COVER IS NOT INCLUDED WITH THIS UNIT BEARING - IF REQUIRED, THIS MUST BE PURCHASED SEPERATELY

Overview

Durable
Full chromoly heat treated construction, genuine Timken bearings, built right at our shop in Colorado. Simply the last bearing you'll ever need.

Compact
With a span of just 2.125" (54mm) from flange to wheel mount, the Spidertrax Ultimate Unit Bearing is the perfect fit for an Ultra4 solid or IFS axle.

Powerful
We've eliminated the need for a drive slug, packed in 40 splined axle splines, all while adding a 4.235" (107.6mm) hub register for wheel centering & strength.

Secure
Spindle nuts are not only thread locked into place, we also use a keyed lock ring. This means never having to worry about loosening spindle nuts.
