Product Description

CHOICE OF SLIMLINE OR WIDE MOUNTING BRACKET - PLEASE REFER TO DIMENSIONS DIAGRAM AND SELECT FROM OPTIONS TAB ABOVE

The Utility-80 (Gen2) is a heavy-duty work light upgraded in 2018 that represents the very best lighting performance through greater intensity and improved spread of light, compared to all other work light solutions of a comparable size and power consumption. Only through advanced material and electronic design has it been possible to harness the light output of 4x20W LEDs in a compact unit to deliver a consistently high level of light output more akin to much larger more expensive products.

Continued advances in, and adoption of the latest, and best, LED technology means the Utility Series stands apart from other work light solutions. 80W of LED power delivers 8,820 raw lumens which is harnessed through ultra-reflective, vacuum-metallised optics designed and engineered using the most sophisticated CAD design and light simulation software available. The result more light distributed over a bigger area; the 50 Lux line, defined in HSE guidelines as the minimum effective illumination for working outdoors at night, is achieved at 19m, and with a spread of 13m (mounted at 3m with 20 degree down angle). Furthermore the LEDs have been carefully selected for their colour temperature, proven to maximise definition while reducing fatigue and strain that can come from using higher colour ranges.

The consistently high level of light output is maintained through an innovative CAE optimised 'Matrix' cooling system; the increased surface area ensures heat generated during operation of the lamp is more efficiently dissipated away from the unit. This process allows the light output to be maximised for longer, simultaneously the Electronic Thermal Management system optimises light output considering the environmental and thermal conditions of the lamp.

Lighting performance aside, the Utility Series is a product built to last, and to withstand the harshest of environments. With a comprehensive 5 year warranty*, the lamps have been extensively tested to comply with EU regulations in relation to vibration, shock, corrosion resistance, and water ingress, and alongside a super-tough construction, advanced electronic design ensures full EMC protection to CISPR-25 (Class 3) standards.

Supplied with male/female Deutsch connectors (part no. DT06-2S/DT04-2P), the Utility-80 is available with a choice of Wide or Slimline mounting bracket, and an ADR approved variant is also available.

* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

What's included:
- x1 Utility-80 LED Work Lamp
- x1 Mounting Bracket (Slimline or Wide - please select from options tab above)



Product Features

  • Fully ECE approved Work Light (Reg10)

    5 Year warranty*

    Made in Britain

    CAE optimised 'Matrix' cooling system

    Optional interchangeable lenses

    Electronic thermal management

    IP67/IP69K watertight

    Automotive grade corrosion resistance

    Anodised aluminium heatsink provides for improved thermal dynamics (see Download section for Care Instructions)

    5,000 kelvin light temperature for maximum definition

    Over voltage protected

    Reverse polarity protected

    Male and female Deutsch connectors included

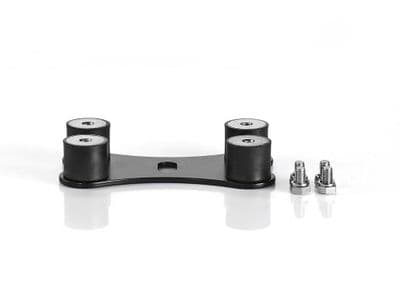

    Optional Quad Core Dampening System protects against vibration (Wide Mount Compatible Only)

Specifications

Voltage Range10-32V
LED Life50,000 hours
Colour Temperature5,000 Kelvin
Weight1260 gr
HIGH BEAM FUNCTION
Total Luminous Flux8820 Lm
Colour Temperature5000K
Number of High Output LEDs4
Power Consumption80 Watts
Current Draw (at 14.4V)5.5 Amps
CERTIFICATION
Work Lamp ECE R10
IP RatingIP67 / IP69K
Salt Spray TestISO 9227 (250H)
EMC ProtectionCISPR-25: 2008 (Class 3)
OPERATING CONDITIONS
ShockTBC
Vibration (BS EN 60068) 10Hz-2000Hz, 10gn
Operating Temperature-40deg C ... +90degC
DIMENSIONS
Width110 mm
Depth85 mm
Height108 mm
PHOTOMETRIC DATA
1Lx Line @79m
5Lx Line @47m
20Lx Line @27m
50Lx Line @ 19m*

* - 50 Lux represents HSE guidelines for effective illumination when working outdoors at night.

Specifications

Brand
Lazer Lamps
Product Code
00U80-G2SLIM
Weight
1.4kg
